Problem 64

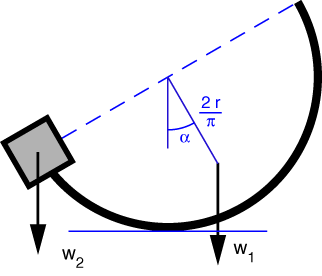

I’m not sure of the practical applications of this problem, but it is cute. The c.g. of the semicircular arc is 2r/\pi from the center of the arc (which you can confirm here), so the free-body diagram will look like this

and the moment equilibrium about the point of contact with the ground gives us

w_1 \frac{2 r}{\pi} \sin\alpha = w_2 r \cos\alpha

A bit of algebra gives us

\frac{w_1}{w_2} = \frac{\pi}{2 \tan\alpha}

which is equivalent to the answer given in the back of the book. I prefer giving answers in terms of tangent because they can be entered in a calculator more directly—calculators don’t have a cotangent key.
